For structures undergoing redesign, the accuracy and detail of the survey work determine the success of the completed project.

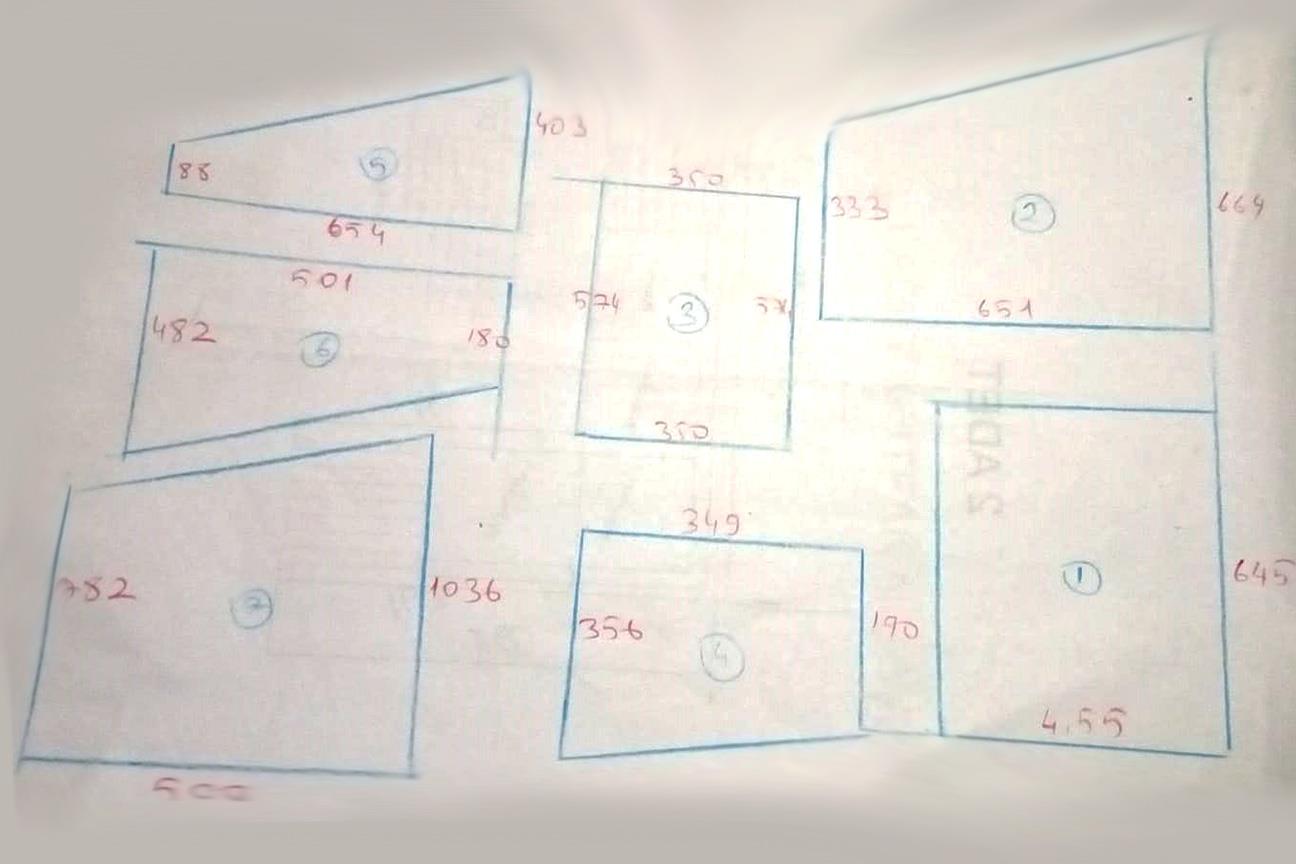

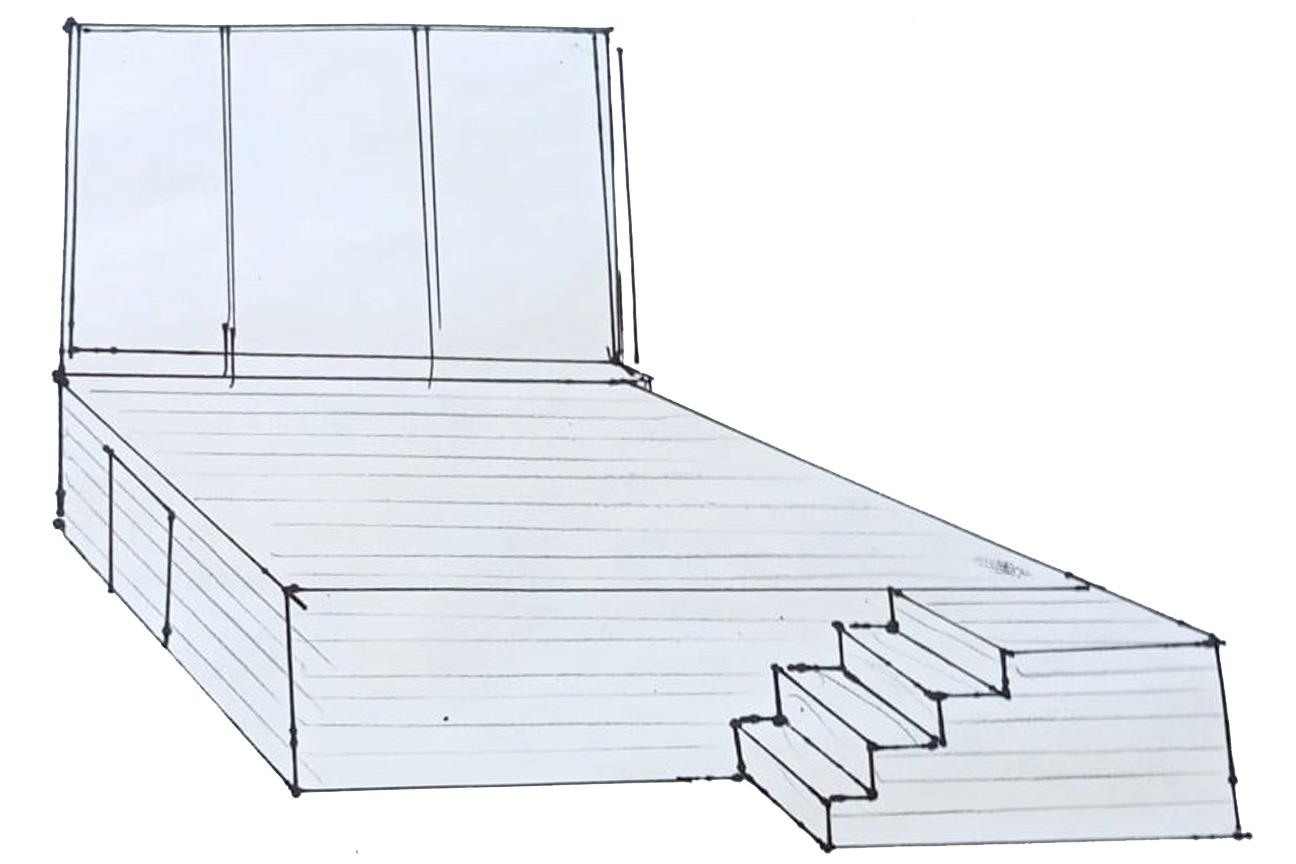

A rough draft made without taking measurements of the project area is called a sketch for the survey drawing. Sketching involves roughly drawing sections, plans, and elevations on paper. The dimensions taken for the sketch are marked and labeled. Subsequently, the survey drawing is completed based on this sketch.
Different scales are used depending on the project area. Rough drafts are made in different scales for plans, masses, stairs, restorations, windows, and doors.
Survey Measurement Sketch Project Works
At Demah Design, we start our projects for pharmacies, healthcare facilities, car dealerships, building interiors, workplaces, schools, and educational centers by taking the necessary measurements and creating detailed sketches on drafting paper. Prior to that, we prepare a rough sketch and take notes of the required information.
We ensure to gather comprehensive information about the project area by taking accurate measurements and photographs.
In addition to our interior design services, our artistic architectural team also provides surveying services.
We carry out the necessary procedures for projects that require approval from official institutions.
Private Tutoring Center Survey and Sketch
In school projects, the first step involves identifying the materials used in the construction of the building. Detailed measurements of the space are taken, and photographs of the existing area are captured from all angles. By evaluating the materials used in the construction, the dimensions of the space, and the photographs taken, the project is drawn up in suitable scales.
School Survey Plan and Sketch
School projects are carried out for both new school openings and the renovation of existing schools. Detailed photographs of the interior areas of the school are taken from all angles. Measurements are taken from every area in detail. The necessary documentation is prepared promptly in accordance with the procedures for permits.
In school projects, the features and condition of the location where the building is situated are also provided upon project delivery. Green areas in the vicinity and surrounding facilities are delivered to our clients.
Car Gallery Sketch and Survey Project
There has been an increase in the number of new car gallery customers who prioritize architectural drawings to maximize the efficiency of the existing space in recent years.
Visual presentation is an important factor that directs customers to purchase in car galleries. The effectiveness of lighting systems in visual presentation is significant. Proper placement of lighting systems also contributes to energy savings.
To ensure customer satisfaction in car galleries, the creation of special areas within the space has become popular. Areas for children to spend time and corners for spouses to read books and magazines are being established. We offer interior design services for car galleries to ensure efficient use of space, comfort, usability, and an aesthetic appearance.
Workplace Sketch and Survey
In architectural projects, workplace floor plan sketches are among the most requested drawings. Customers seek support from architects to use their offices efficiently. They prioritize long-term comfort using the right materials according to the intended use of the workplace. They also apply for workplace permits related to their industries.
Design is carried out based on the characteristics of the existing structure. Projects requiring approval from official authorities are designed accordingly.
Work Permit Survey Drawing and Sketch
Businesses may need changes in their workplaces according to the number of employees and their needs.
At Demah Design, we conduct restoration work in workplaces. Additionally, we prepare work permit survey plans. We prepare them in a way to obtain valid approval from official authorities.
After necessary inspections are conducted at the workplace, photographs are taken. Care is taken during measurements to ensure the use of all tools and equipment. Every detail is elaborated with precision.
Indoor Survey Sketch
Detailed measurements of the interior of the building to be sketched are taken and calculated meticulously. It is crucial to ensure accurate measurements during the drawing process, as they greatly impact the results of the implementation. Care should be taken to obtain precise measurements between the ceilings and floors of the rooms.
Surveying inside interiors or buildings should be done with great care. When making changes inside buildings, the first step is to conduct a thorough survey and take detailed measurements. Subsequently, it should be prepared in a certain scale.
Photographs are taken from various angles throughout the building. Therefore, multiple photographs are taken from different angles in each room.
Sketches of indoor spaces should be prepared with a professional team.
Pharmacy Survey and Pharmacy Sketch
One of the sectors where survey sketches are most needed is pharmacies. It is mandatory to have a survey sketch done to obtain a pharmacy license.
To prepare pharmacy sketches, we first take detailed measurements of all dimensions. We also make plans for the restoration of existing pharmacies.
When obtaining approval from official institutions, all necessary details are specified in the pharmacy plan sketch. It is delivered in a scale of 1:1 or 1:5.
Clinic or Hospital Survey and Sketch
Before starting the restoration of healthcare facilities that will be restructured, it is necessary to prepare a sketch. Before the implementation begins, measurements should be taken for all planned innovations, and a draft plan should be prepared.
Provincial and district health directorates request survey sketches for medical establishments, hospitals, physiotherapy centers, medical centers, and clinics.
The condition of building materials in healthcare facilities must be well determined before starting the restoration. Based on the evaluation of building materials, necessary actions should be specified.
Detailed photographs of the structures to be renovated should be taken. When taking photos, it is essential to take pictures from different angles. Detailed photographs are important for making the sketches more understandable.
Detailed measurements are required to be taken for accurate scaling. These measurements are crucial for completing the project smoothly during renovation.
Scale Selection for Surveying According to Usage Area
The scale of the survey process is determined based on the purpose of the survey in the project area. Plans, sections, and elevations should be prepared with survey measurements that fully describe the usage area.
- For staircase railings, scales can be prepared in 3 different scales depending on the project's specifications. Depending on the situation, scales of 1/10, 1/20, or 1/50 are used.
- For windows and doors, a scale of 1/10 is used.
- For sills, three different scales can be used depending on the situation. Scales of 1/10, 1/20, or 1/50 are used.
- For restoration projects, scales of 1/20 and 1/50 are used depending on the size of the area.
The locations and positions where the photographs of the project area are taken should be marked on the plan.
